Trigeminal Neuralgia

Trigeminal neuralgia (TN) is a disorder characterized by sudden-onset, extremely severe, electric shock-like facial pain occurring within the distribution of the trigeminal nerve (cranial nerve V). It is regarded as one of the most severe pain syndromes encountered in clinical medicine. The estimated annual incidence is approximately 4-5 cases per 100,000 population, with a prevalence of approximately 15-20 per 100,000.

Women are affected more frequently than men (approximately 1.7:1), and the incidence increases particularly after the age of 50 years.

Classification According to ICHD-3

Classical Trigeminal Neuralgia
  • Neurovascular compression of the trigeminal nerve at or near its root entry zone at the brainstem, most commonly by the superior cerebellar artery or anterior inferior cerebellar artery
Secondary Trigeminal Neuralgia
  • Caused by an identifiable underlying disorder, such as a tumor, multiple sclerosis plaque, or arteriovenous malformation (AVM); structural causes must be excluded by appropriate neuroimaging
Idiopathic Trigeminal Neuralgia
  • No demonstrable neurovascular compression with morphological nerve-root changes and no identifiable secondary cause

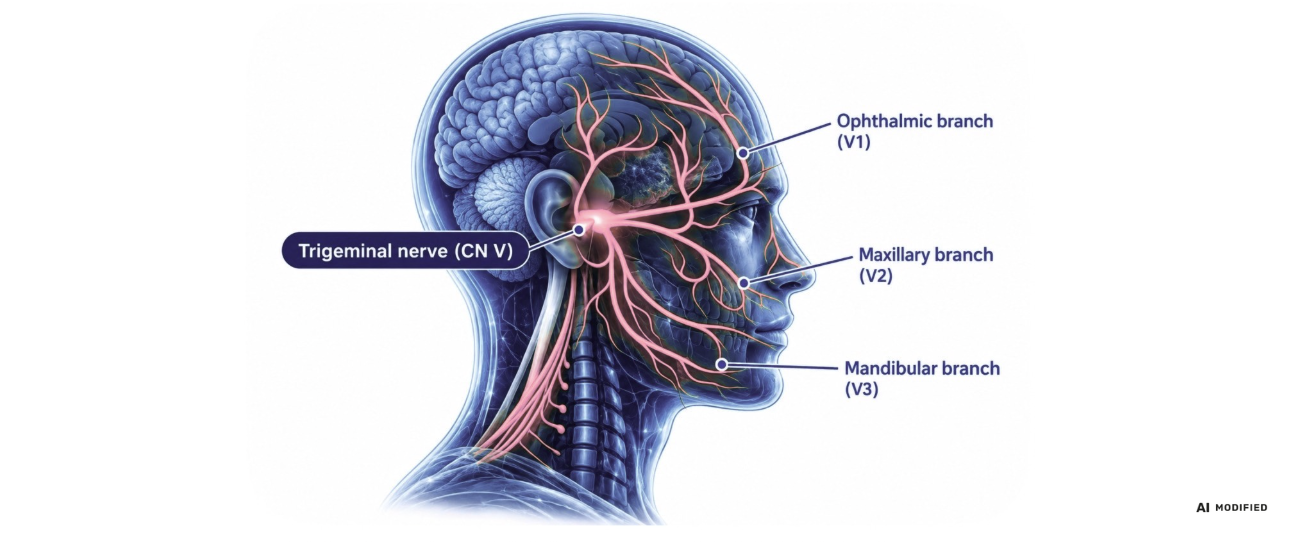

The trigeminal nerve emerges from the pons and divides into three major branches:

  • V1 (ophthalmic division): forehead, eye region, and bridge of the nose
  • V2 (maxillary division): cheek, upper jaw, upper lip, and lateral nose
  • V3 (mandibular division): lower jaw, lower lip, chin, and anterior tongue

Typical Distribution and Triggers

V1 (Ophthalmic Division) - approximately 5%
  • Forehead, periorbital region, and bridge of the nose
  • Pain may be triggered by light touch to the forehead
V2 (Maxillary Division) - approximately 35%
  • Cheek, upper lip, palate, and nose
  • Chewing, swallowing, or light touch to the cheek may trigger a painful paroxysm
V3 (Mandibular Division) - approximately 20%
  • Mandibular region, lower lip, and tongue
  • Pain may be triggered by speaking, chewing, or brushing the teeth
Combined V2 + V3 Involvement
  • Approximately 40%

Trigeminal neuralgia is unilateral in approximately 95% of cases. Bilateral facial pain should raise particular concern for a secondary cause, especially multiple sclerosis, and warrants prompt MRI evaluation.

Symptoms and Their Pathophysiology

  • Sudden onset and electric shock-like quality, typically lasting from a fraction of a second to a maximum of approximately 2 minutes
  • Extremely severe, sharp, stabbing, or electric pain
  • Strictly unilateral pain within the distribution of one or more trigeminal divisions
  • Pain-free intervals between paroxysms
  • Attacks that can be triggered by otherwise innocuous stimuli

Typical Triggers

  • Light touch to the cheek, upper lip, or lateral nose
  • Chewing, swallowing, speaking, or yawning
  • Brushing the teeth or shaving
  • Cold air or exposure of the face to cold temperatures
  • Occasionally, spontaneous attacks without an identifiable trigger

Remission Periods

Pain-free remission may persist for months or even years and is particularly characteristic of classical trigeminal neuralgia.

  • Over time, remission periods may become shorter and the frequency of painful attacks may increase

Trigeminal Neuralgia with Concomitant Continuous Pain

  • Some patients experience an additional persistent background facial pain between paroxysms; this phenotype is generally more difficult to treat

Differential diagnosis: dental pain. Patients with trigeminal neuralgia are frequently initially treated for presumed dental disease and may undergo unnecessary dental procedures or tooth extractions. The characteristic brief, electric shock-like paroxysms and their reproducible triggering by innocuous stimuli are key diagnostic features.

Diagnosis

The diagnosis of trigeminal neuralgia is primarily clinical. A detailed pain history - including pain quality, anatomical distribution, triggers, attack duration, and frequency - is essential.

Clinical Assessment

  • Recurrent paroxysms of unilateral facial pain
  • Pain confined to the distribution of one or more divisions of the trigeminal nerve
  • Electric shock-like, shooting, stabbing, or sharp pain lasting from a fraction of a second up to approximately 2 minutes
  • Severe pain intensity
  • Precipitation by innocuous stimuli within the affected trigeminal distribution

MRI

High-resolution cranial MRI is the key imaging investigation. Dedicated sequences such as CISS/FIESTA, together with contrast-enhanced T1-weighted imaging, permit detailed evaluation of the trigeminal nerve and adjacent structures.

  • Assessment for neurovascular compression at the trigeminal root entry zone
  • Exclusion of secondary causes such as tumors, meningiomas, multiple sclerosis plaques, or arteriovenous malformations
  • Three-dimensional reconstruction for precise visualization of the anatomical relationship between the trigeminal nerve and adjacent vessels

Additional Diagnostic Investigations

  • Neurophysiological testing, including trigeminal evoked potentials, may be useful in diagnostically uncertain cases
  • Dental and/or maxillofacial assessment to exclude odontogenic or other local causes of facial pain

Neurological Consultation

  • Assessment of relevant differential diagnoses, including trigeminal autonomic cephalalgias such as cluster headache and SUNCT, postherpetic neuralgia, and persistent idiopathic facial pain

Treatment Options

Treatment of trigeminal neuralgia follows a stepwise approach ranging from pharmacological management to interventional and neurosurgical procedures. The choice of treatment depends on the type of trigeminal neuralgia, the patient's general medical condition, neuroimaging findings, and the response to previous therapies.

Pharmacological Treatment

  • Carbamazepine - first-line therapy and initially effective in approximately 70-80% of patients
  • Oxcarbazepine - an established alternative that may be better tolerated in some patients
  • Lamotrigine, gabapentin, or baclofen may be considered as additional or second-line agents

Treatment efficacy may diminish over time, while adverse effects such as dizziness, somnolence, and hyponatremia may limit long-term pharmacological therapy.

Microvascular Decompression (MVD)

  • Microsurgical separation of the offending vessel from the trigeminal nerve, typically using an interposition material
  • Provides the highest rates of durable long-term pain relief in appropriately selected patients
  • Primarily indicated for classical trigeminal neuralgia with a demonstrable neurovascular conflict
  • Potential complications include hearing impairment, facial weakness, cerebrospinal fluid leakage, and other procedure-related risks

Percutaneous Rhizotomy

  • Percutaneous procedures include balloon compression, glycerol rhizolysis, and radiofrequency thermocoagulation targeting the trigeminal ganglion or root
  • Can provide rapid or immediate pain relief
  • Recurrence is more frequent than after successful microvascular decompression
  • Facial numbness or sensory disturbance is a characteristic treatment-related adverse effect

Radiosurgery

CyberKnife / ZAP-X
  • Non-invasive treatment
  • Clinically meaningful initial pain relief in approximately 70-90% of appropriately selected patients
  • Therapeutic effect typically develops over several weeks to months rather than immediately
  • Repeat radiosurgery may be considered in selected recurrent cases
  • Outpatient treatment without general anesthesia
  • Particularly relevant for patients with increased surgical risk, recurrent trigeminal neuralgia, or selected cases associated with multiple sclerosis

CyberKnife & ZAP-X

Stereotactic radiosurgery uses a highly focused radiation dose to modulate trigeminal nerve function, typically targeting a short segment of the cisternal trigeminal nerve near the brainstem. The biological effect is thought to involve focal axonal and myelin changes that reduce pathological pain transmission while preserving surrounding critical structures as far as possible.

Radiosurgery May Be Appropriate for:
  • Classical or idiopathic trigeminal neuralgia
  • Insufficient efficacy or intolerance of pharmacological therapy
  • Increased operative risk or patient preference to avoid open surgery
  • Recurrent pain following previous treatment
  • Advanced age or significant medical comorbidity
  • Trigeminal neuralgia associated with multiple sclerosis
Technical Approach

For radiosurgical treatment of trigeminal neuralgia, a short segment of the trigeminal nerve in the prepontine cistern is precisely defined as the radiosurgical target. CyberKnife and ZAP-X permit highly conformal dose delivery from multiple beam directions without invasive frame fixation. Dose constraints are applied rigorously to minimize radiation exposure to adjacent critical structures, particularly the brainstem and cochlea.

Our Treatment Concept

Detailed MRI Assessment

  • High-resolution imaging sequences for precise localization of the trigeminal nerve
  • Detailed assessment of the anatomical relationship between the nerve and adjacent vessels

Interdisciplinary Evaluation

  • Neurology
  • Neurosurgery
  • Radiation oncology / radiosurgery

Individualized Treatment Planning

  • Precise definition of the trigeminal nerve target
  • Strict protection of the brainstem and cochlea through individualized dose constraints

Outpatient Treatment

  • Usually a single treatment session
  • Treatment time approximately 30-60 minutes
  • No general anesthesia
  • No invasive stereotactic frame fixation

Follow-Up

  • Structured documentation of pain response and medication requirements
  • MRI follow-up, generally after 6-12 months, according to the individual clinical situation

In the Event of Recurrence

  • Repeat treatment may be considered in selected patients
  • Previous radiation exposure is taken into account when determining the retreatment dose

Frequently Asked Questions

Unlike microvascular decompression or percutaneous rhizotomy, the effect of CyberKnife radiosurgery is not immediate. Pain relief typically begins within approximately 2-8 weeks, although some patients may not experience a meaningful response until 3-6 months after treatment. Published series report substantial or complete pain reduction in approximately 70-90% of patients during the first 6 months. This delayed onset of action is an important aspect of patient counseling.

A substantial proportion of patients remain pain-free or significantly improved for several years after radiosurgery. Recurrence may occur and is generally more frequent than after successful microvascular decompression. In selected patients, an important advantage of radiosurgery is that repeat treatment may be considered if clinically appropriate.

Both treatments aim to modify pathological pain transmission within the trigeminal system, but they differ fundamentally in technique. Percutaneous rhizotomy - including balloon compression or radiofrequency thermocoagulation - generally provides immediate pain relief and is performed under anesthesia or deep sedation, but facial numbness and other sensory disturbances occur more frequently. Radiosurgery is completely non-invasive and requires no general anesthesia, but its therapeutic effect is delayed. Sensory dysfunction may occur after either procedure, although the risk profile differs according to technique and dose.

Usually not. Pharmacological treatment for trigeminal neuralgia is generally continued during and immediately after radiosurgery. Once a sustained therapeutic effect has developed over the following weeks or months, medication may be gradually reduced if clinically appropriate. Any dose adjustment should be coordinated closely with the treating neurologist.

Radiosurgery is an established treatment option for selected patients with trigeminal neuralgia associated with multiple sclerosis. In this setting, pain may be related to demyelinating lesions involving trigeminal pathways and/or concomitant neurovascular compression. Microvascular decompression is appropriate only when a relevant neurovascular conflict is present and the individual clinical circumstances support surgery. Radiosurgery can provide clinically meaningful pain relief, although recurrence rates may be higher than in classical trigeminal neuralgia.

Treatment Enquiries

As treatment options for trigeminal neuralgia have become increasingly diverse, the choice of therapy should always take the patient's individual clinical situation and quality of life into account. It is important to us that patients, their families, and those supporting them understand the condition, the available treatment options, and the considerations relevant to an individual treatment decision.

Our team is committed to ensuring that you feel well cared for from your first contact with the ERCM. For treatment enquiries, please use our contact form. You may also contact us by telephone during our opening hours or via our social media channels.

Each enquiry is reviewed individually and processed promptly.
